  • 1/4'' 1x7 galvanized steel wire strand for greenhouse

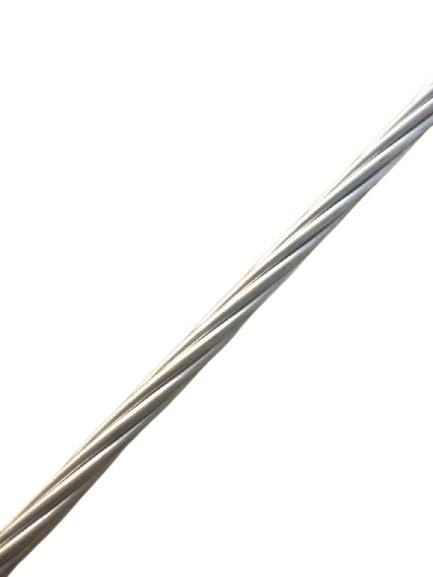

1/4'' 1x7 galvanized steel wire strand for greenhouse




Galvanized steel wire cable/ guy wire/ galvanized steel wire strand/overhead ground wire/galvanized stranded wire/ stay wire/guy wire/galvanized guy strand/ galvanized steel wire cable /zinc-coated steel wire strand
Structure:   1×3 1×7 1×19
Standard:   ASTM A363, ASTM A475, ASTM B498,BS EN50189,BS EN183, IEC 60888
Diameter:  1/4"  5/16"   3/16"  3/8"  7/16"  1/2" or customized size
Grade:     HS, EHS,Common,Utilities, Common,Siemens-Martin
TensileStrength:  1270MPa,1370MPa,1470MPa,1570MPa,1670MPa,2160mpa
Zinc coating:  CLASS A, CLASS B, CLASS C
Features:    1. Good softness 2. Good stability (3) good reliability 4. High strength
Packing:   Wooden reel+woven bag+pallet, or as customer requirement
Application:  Used for hanger bracket  ,hanging,  fixed solid objects and communication cable, overhead power lines and  ground wire, etc
Remark:  OEM / ODM / Buyer Label accepted.


Hot Saled Specifications

Diameter of Strand
 in. [mm]

Number of Wires
 in Strand

 Diameter of  Wire in Strand
 in. [mm]

Approx. Weight of Strand
lb/1000 ft [kg/km]

Minimum Breaking Strength of Strand, lbf [kN]

Common Grade

HS Grade

 EHS Grade

1/4'' [6.35mm]

3

0.120 [3.05]

117 [174]

1 860 [8.274]

4 730 [21.040]

6 740 [29.981]

1/4'' [6.35mm]

7

0.08'' [2.03]

121 [180]

1900 [8.452]

4750 [21.129]

6650 [29.581]

5/16'' [7.94mm]

3

0.145 [3.68]

171 [255]

2 490 [11.076]

6 350 [28.246]

9 100 [40.479]

5/16'' [7.94mm]

7

0.104'' [2.64]

205 [305]

3200 [14.234]

8000 [35.586]

11200 [49.82]

3/8'' [9.52mm]

3

 0.165 [4.19]

220 [328]

3 330 [14.813]

8 360 [37.187]

11 800 [52.489]

3/8'' [9.52mm]

7

0.120'' [3.05]

273 [407]

4250 [18.905]

10800 [48.04 ]

15400 [68.503]

1/2'' [12.7mm]

7

0.165'' [4.19]

517 [770]

7 400 [32.917]

 18 800 [83.627]

26 900 [119.657]

1/2'' [12.7mm]

19

0.100 [2.54]

504 [751]

7 620 [33.895]

19 100 [84.961]

26 700 [118.768]
