Galvanized steel wire strands

ASTM A475 zinc coated steel wire strand

EMAIL INQUIRY

ASTM A475 zinc coated steel wire strand
· Zinc-coating Grade : Class 1 A B & Class C
· Structure : 1*7 1*19
· Grade: commom grade , martion grade, HS grade, EHS grade
· Techinique:Left lay
· Common size.: 1/4" , 5/16" , 3/8" , 1/2"

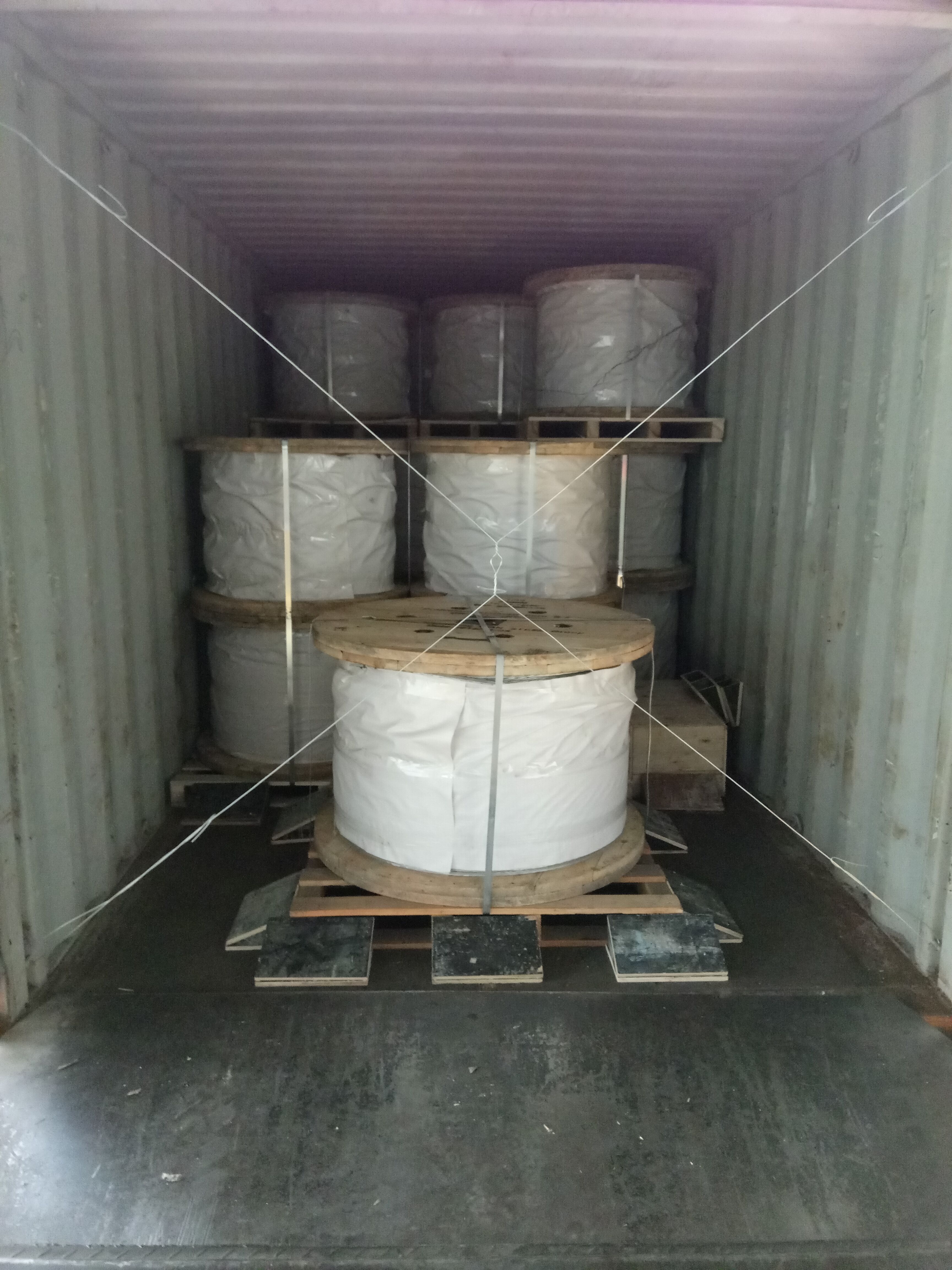

· Reel : 1500m/wooden reel or as customer's request
· Packing: By Coil , By Good Quality Wooden Reel, Steel Reel

Dia.(Inch)	No. of Wire	(Inch)	Min. Breaking Load(lbf)					Approximate Weight(lb/100ft)
Dia.(Inch)	No. of Wire	(Inch)	Utilities Grade	Common Grade	Siemens-Martin Grade	High-Strength Grade	Extra High-Strength Grade	Approximate Weight(lb/100ft)
1/8 5/32	7 7	0.041 0.052	----- ----- ----- -----	540 870	910 1470	1330 2140	18300 29400	3.2 5.1
3/16 3/16 7/32	7 7 3	0.062 0.065 0.104	----- ----- 2400 ---- ----	1150 ---- --- 1400	1900 --- --- 2340	2850 --- ---- 3500	3990 ----- ----- 4900	7.3 8.0 8.8
7/32 1/4 1/4	7 3 3	0.072 0.120 0.120	---- ---- 3150 4500	1540 1860 --- ---	2560 3040 ---- ---	3850 4730 ---- ----	5400 6740 --- -----	9.8 11.7 11.7
1/4 9/32 9/32	7 3 7	0.080 0.130 0.093	---- --- ---- --- 4600	1900 2080 2570	3150 3380 4250	4750 5260 6400	6650 7500 8950	12.1 13.7 16.4
5/16 5/16 5/16	3 7 7	0.145 0.104 0.109	6500 --- ---- 6000	2490 3200 --- ---	4090 5350 --- ---	6350 8000 ----- ----	9100 11200 ----- ----	17.1 20.5 22.5
3/8 3/8 7/16	3 7 7	0.165 0.120 0.145	8500 11500 18000	3330 4250 5700	5560 6950 9350	8360 10800 14500	11800 15400 20800	22.0 27.3 39.9
1/2 1/2 9/16	7 19 7	0.165 0.100 0.188	25000 --- ----- ---- -----	7400 7620 9600	12100 12700 15700	18800 19100 24500	26900 26700 35000	51.7 50.4 67.1
9/16 5/8 5/8	19 7 19	0.113 0.207 0.125	---- --- ---- --- ---- ---	9640 11600 11000	16100 19100 18100	24100 29600 28100	33700 42400 40200	63.7 81.3 79.6
3/4 7/8 1	19 19 19	0.150 0.177 0.200	---- ---- ---- --- ---- ---	16000 24900 28700	26200 35900 47000	40800 55800 73200	58300 79700 104500	115.5 158.1 207.3
1 1-1/8 1-1/4	37 37 37	0.143 0.161 0.179	---- --- ---- ---- ----- ---	28300 36000 44600	46200 58900 73000	71900 91600 113600	102700 130800 162200	205.7 269.1 324.8
