Galvanized steel wire strands

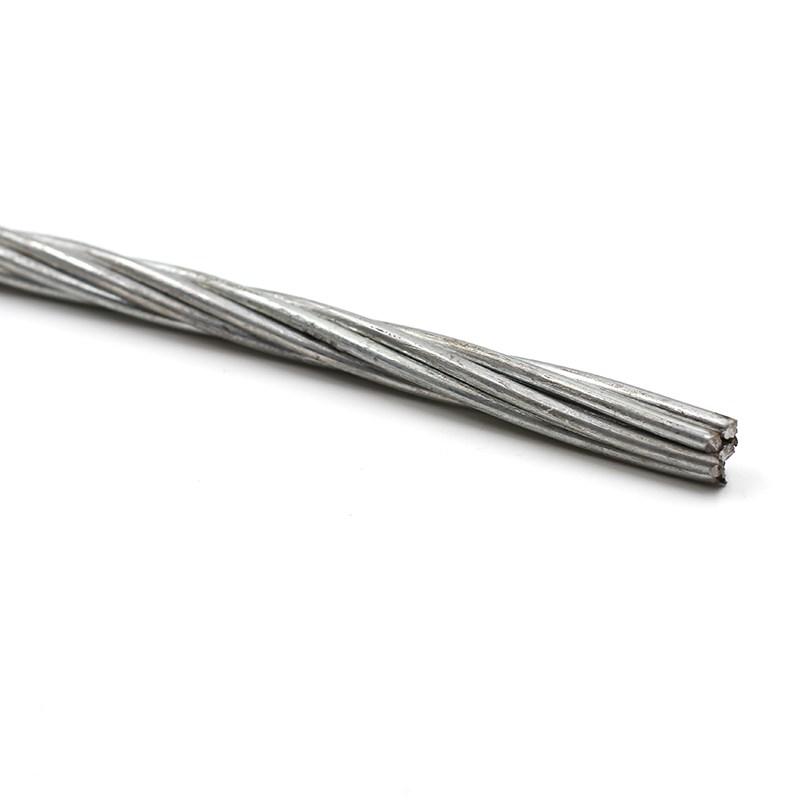

3/8'' EHS 1x7 galvanized steel wire strand

EMAIL INQUIRY

Galvanized steel wire cable/ guy wire/ galvanized steel wire strand/overhead ground wire/galvanized stranded wire/ stay wire/guy wire/galvanized guy strand/ galvanized steel wire cable /zinc-coated steel wire strand
l Structure:   1×3 1×7 1×19
l Standard:   ASTM A363, ASTM A475, ASTM B498,BS EN50189,BS EN183, IEC 60888
l Diameter: 1/4"  5/16"   3/16" 3/8" 7/16" 1/2" or customized size
l Grade:     HS, EHS,Common,Utilities, Common,Siemens-Martin
l TensileStrength: 1270MPa,1370MPa,1470MPa,1570MPa,1670MPa,2160mpa
l Zinc coating: CLASS A, CLASS B, CLASS C
l Features:    1. Good softness 2. Good stability (3) good reliability 4. High strength

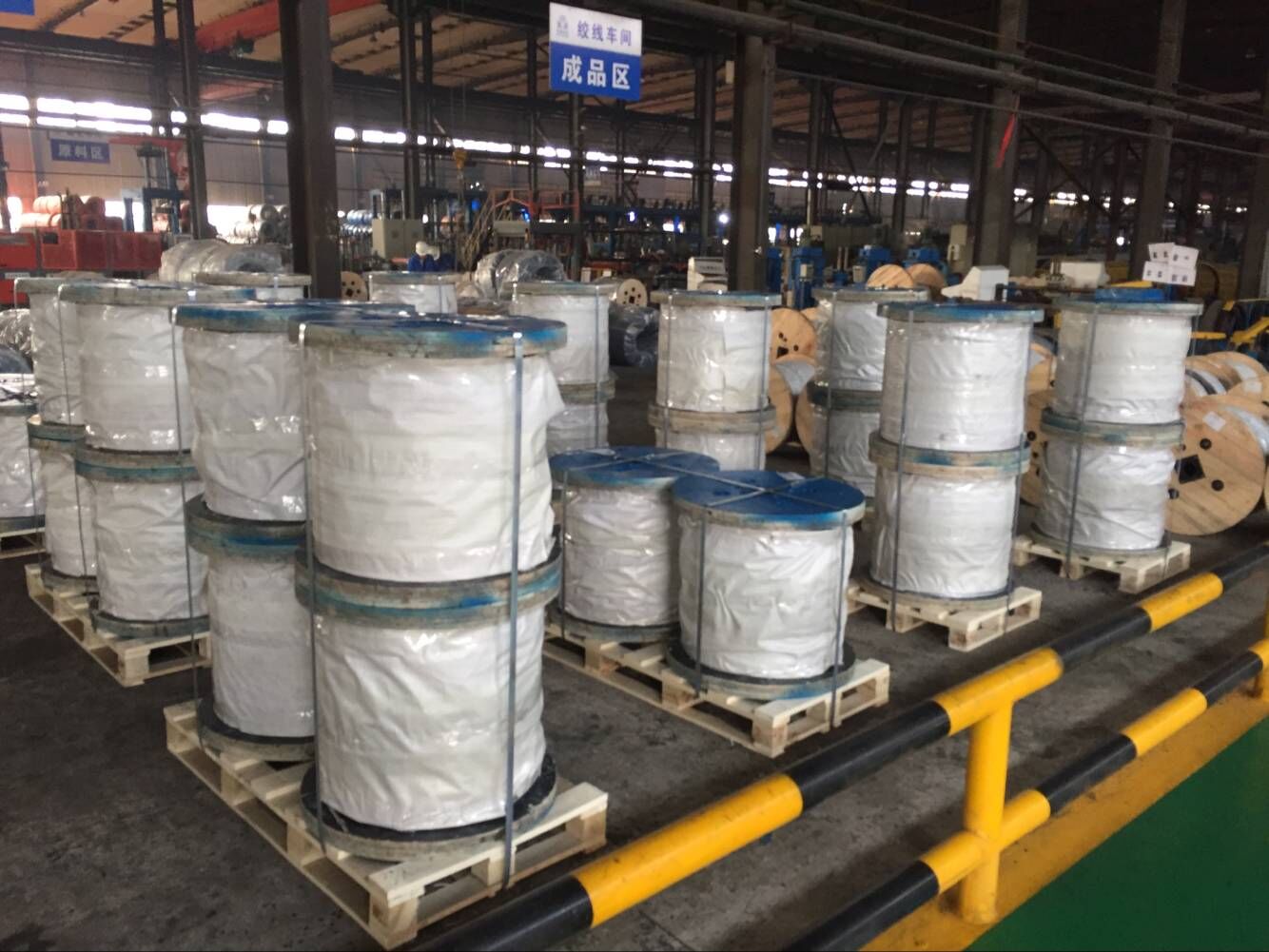

l Packing: Wooden reel+woven bag+pallet, or as customer requirement
l Application: Used for hanger bracket ,hanging, fixed solid objects and communication cable, overhead power lines and ground wire, etc
l Remark: OEM / ODM / Buyer Label accepted.

Hot Saled Specifications
Diameter of Strand in. [mm]	Number of Wires in Strand	Diameter of Wire in Strand in. [mm]	Approx. Weight of Strand lb/1000 ft [kg/km]	Minimum Breaking Strength of Strand, lbf [kN]
Diameter of Strand in. [mm]	Number of Wires in Strand	Diameter of Wire in Strand in. [mm]	Approx. Weight of Strand lb/1000 ft [kg/km]	Common Grade	HS Grade	EHS Grade
1/4'' [6.35mm]	3	0.120 [3.05]	117 [174]	1 860 [8.274]	4 730 [21.040]	6 740 [29.981]
1/4'' [6.35mm]	7	0.08'' [2.03]	121 [180]	1900 [8.452]	4750 [21.129]	6650 [29.581]
5/16'' [7.94mm]	3	0.145 [3.68]	171 [255]	2 490 [11.076]	6 350 [28.246]	9 100 [40.479]
5/16'' [7.94mm]	7	0.104'' [2.64]	205 [305]	3200 [14.234]	8000 [35.586]	11200 [49.82]
3/8'' [9.52mm]	3	0.165 [4.19]	220 [328]	3 330 [14.813]	8 360 [37.187]	11 800 [52.489]
3/8'' [9.52mm]	7	0.120'' [3.05]	273 [407]	4250 [18.905]	10800 [48.04 ]	15400 [68.503]
1/2'' [12.7mm]	7	0.165'' [4.19]	517 [770]	7 400 [32.917]	18 800 [83.627]	26 900 [119.657]
1/2'' [12.7mm]	19	0.100 [2.54]	504 [751]	7 620 [33.895]	19 100 [84.961]	26 700 [118.768]
